Pneumatisch Swirl Hotmelt handpistool TR 60 lcd

Swirl-hotmelt-handpistool_TR60_1
Swirl-hotmelt-handpistool_TR60_2
TR 60 handpistool
Product SKU:  PHP-TR60LCD
Product Availability:   1

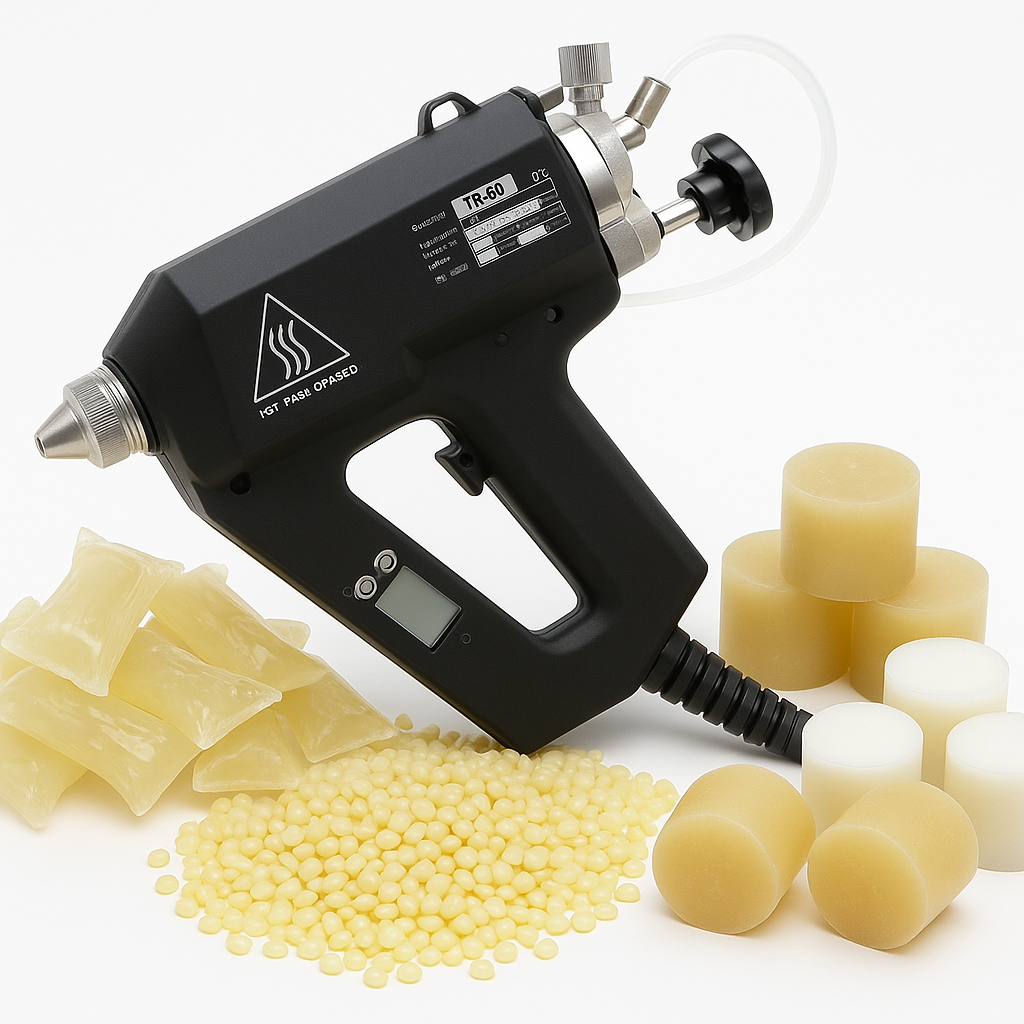

Pneumatic swirl / spray hot melt hand gun with digital temperature read-out, for hot melt granulate, pillows and 43mm slugs.
Price without tax:
€1.625,00
Tax amount €341,25
Ask a question about this product

Intadgun TR 60 LCD

 intadb vignet wit 80

Swirl hotmelt handpistool TR60 2

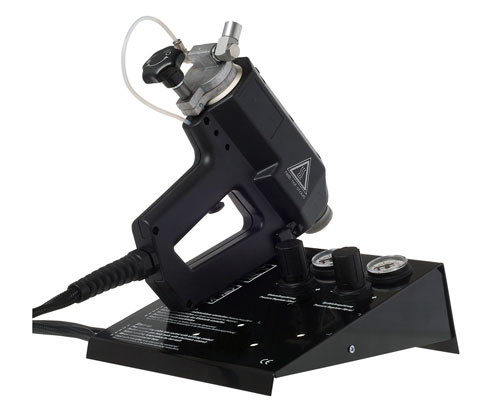

The TR 60 LCD Hot-Spray-System consists of the TR 60 LCD glue gun
and the stand on which the gun may be deposited.
The TR 60 LCD is a hot-melt adhesive spray system. Spray application is a non-contact glue application, which means it
goes easy on the materials that are about to be glued. Also,
spray application allows covering great areas and using very
little glue. A stand for storing with built in pressure regulator and manometer is part of the system and permanently attached to
the TR 60 LCD, so setting the right glue output and spray pattern becomes very easy. The hot-melt adhesive is extruded through air pressure. Pneumatic glue guns increase work speed and simplify exact dosing of the glue. Thanks to the built in electronic temperature regulation the glue gun is ready to work within 3 to 10 minutes. Furthermore, it keeps the temperature on a constant level thus is a perfect suit for processing temperature-sensitive hotmelt glue.		 A LCD-display and push-buttons allow a precise temperature adjustment. This way, the user always knows the current temperature of the glue applicator and is able to apply the glue at the intended temperature. The TR 60 LCD hot-melt glue gun can be loaded with granulate, pillows and 43 mm slugs. It offers maximum flexibility for choosing the right glue and lets you benefit
from cost-advantages ofdifferent shapes of hot-melt. The capacity of 250 ml is sufficient for numerous gluings. The TR 60 LCD can be switched to dot- and lineapplication with an adapter. The number of possible application patterns is widely extended by our nozzle range. Almost all of the offered nozzles can be used with every glue gun in combination with a separate adapter.

Technical data
 Type TR 50.4 TR 55 LCD TR 60 LCD
 Power supply 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
 Consumption 550 W / 2.4 Ah 600 W / 2.6 Ah 480 W / 2.1 Ah
 Temperature controle Thermostat Electronic Electronic
 Temperature adjustment 20 – 200°C* (analog) 50 – 210°C* (digital) 50 – 210°C* (digital)
 Temperature precision ± 5°C ± 2°C ± 2°C
 Tank content 250 ml 330 ml 250 ml
 Heating time ± 3 - 10 min. ** ± 3 - 10 min. ** ± 3 - 10 min. **
 Degree of protection I I I
 Class of protection IP 30 IP 30 IP 30
 Weight 1.200 gr 1.400 gr 1.200 gr
 Operation Pneumatic / 0.5 - 6 bar Pneumatic / 0.5 - 6 bar Pneumatic / 0.5 - 6 bar
 Length of electric cord 8.5m 8.5m 4.5m
 Glue application Lines or dots Lines or dots Spray/Swirl
 Recommend melts granulate, pearls, pillows,
43mm slugs		 granulate, pearls, pillows,
43mm slugs		 granulate, pearls, pillows,
43 mm slugs

* Adjustable temperature, through which a great variety of hot melt glues can be worked with.
   TR 55 LCD and TR 60 LCD guns are also available on special request in High Temperature versions (50 - 235°C or 250°C)
** Depending on the hotmelt in use.

Accessoiries
TR pneu serie handpistolen nozzles
Please inform after our variety of nozzles.
