Pneumatic Hot melt hand gun TR 55 lcd

Pneumatisch_hotmelt_granulaat_handpistool_TR55_1
TR 55
Product SKU:  PHP-TR55
Product Availability:   Order on request
Pneumatic hot melt hand gun with digital temperature read-out, for hot melt granulate, pillows and 43mm slugs. Delivery excluding work station.
Price without tax:
€1.150,00
Tax amount €241,50
Ask a question about this product

Intadgun TR 55 LCD

 intadb vignet wit 80

Pneumatisch hotmelt granulaat handpistool TR55 1

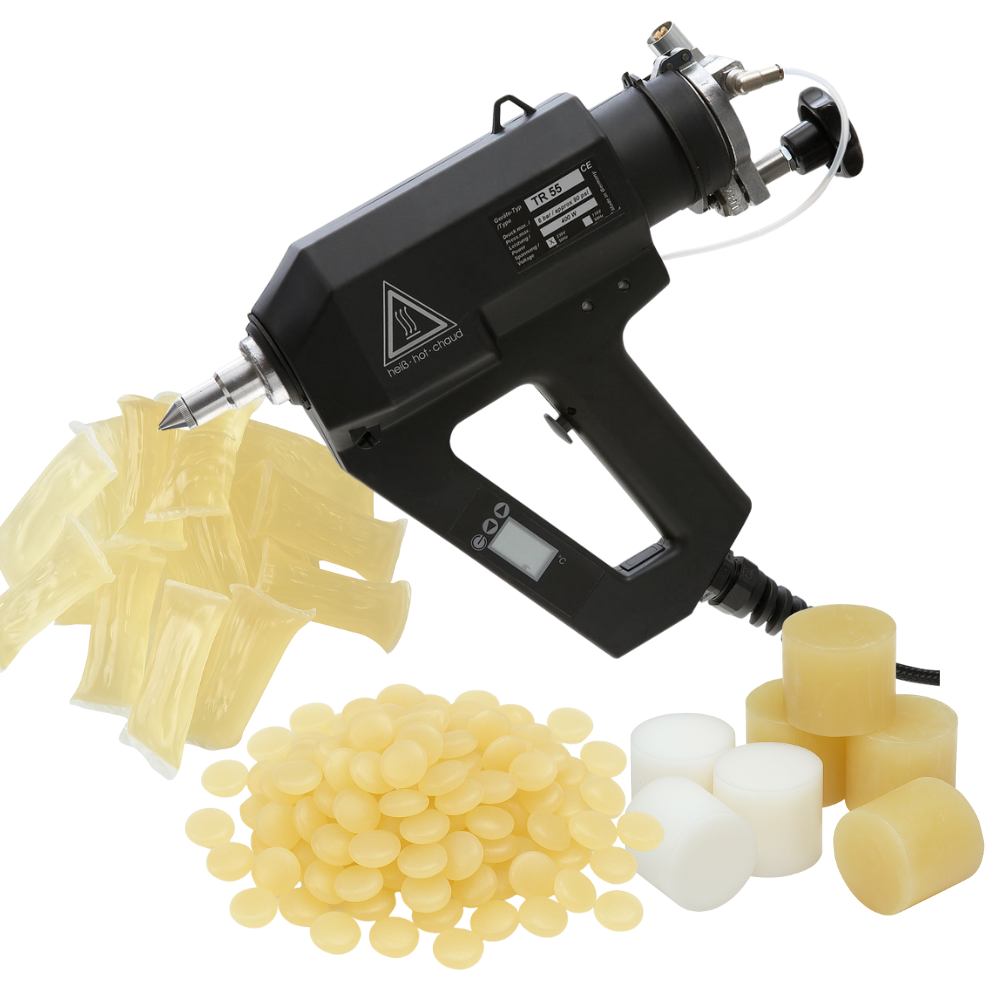

The glue gun TR 55 LCD works with high and low viscosities hot-melt glues
in granulate, pearl, pillow and slug shape.
The hot-melt adhesive is extruded through air pressure. Pneumatic glue guns increase work speed and simplify exact dosing of the glue. Thanks to the built in electronic temperature regulation the glue gun is ready to work within 3 to 10 minutes. Furthermore, it keeps the temperature on a constant level thus is a perfect suit for processing temperature-sensitive hot-melt glue. A LCD-display and push-buttons allow a precise temperature adjustment. This way, the user always knows the current temperature of the glue applicator and is able to apply the glue at the intended temperature. The glue gun TR 55 LCD can be loaded with granulate, pillows and 43 mm slugs. It offers maximum flexibility for choosing the right glue and lets you benefit from cost-advantages of different shapes of hot-melt. The notably large capacity of 330 ml allows continuous work for a long time. The number of possible application patterns is widely extended by the Reka nozzle range. Almost all of the offered nozzles can be used with every Reka glue gun in combination with a separate adapter.

Technical data
 Type TR 50.4 TR 55 LCD TR 60 LCD
 Power supply 230 V / 50 Hz 230 V / 50 Hz 230 V / 50 Hz
 Consumption 550 W / 2.4 Ah 600 W / 2.6 Ah 480 W / 2.1 Ah
 Temperature controle Thermostat Electronic Electronic
 Temperature adjustment 20 – 200°C* (analog) 50 – 210°C* (digital) 50 – 210°C* (digital)
 Temperature precision ± 5°C ± 2°C ± 2°C
 Tank content 250 ml 330 ml 250 ml
 Heating time ± 3 - 10 min. ** ± 3 - 10 min. ** ± 3 - 10 min. **
 Degree of protection I I I
 Class of protection IP 30 IP 30 IP 30
 Weight 1.200 gr 1.400 gr 1.200 gr
 Operation Pneumatic / 0.5 - 6 bar Pneumatic / 0.5 - 6 bar Pneumatic / 0.5 - 6 bar
 Length of electric cord 8.5m 8.5m 4.5m
 Glue application Lines or dots Lines or dots Spray/Swirl
 Recommend melts granulate, pearls, pillows,
43mm slugs		 granulate, pearls, pillows,
43mm slugs		 granulate, pearls, pillows,
43 mm slugs

* Adjustable temperature, through which a great variety of hot melt glues can be worked with.
   TR 55 LCD and TR 60 LCD guns are also available on special request in High Temperature versions (50 - 235°C or 250°C)
** Depending on the hotmelt in use.

Delivery; including pressure regulator and manometer and additional parts.


Accessoiries

Standaard voor TR serie hotmelt handpistool kl

Stand with manometer
TR pneu serie handpistolen nozzles
Please inform after our variety of nozzles.
