UES hot melt gun H302 44

Product SKU: UES-H302-44

Product Availability: Not on stock

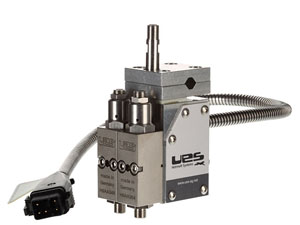

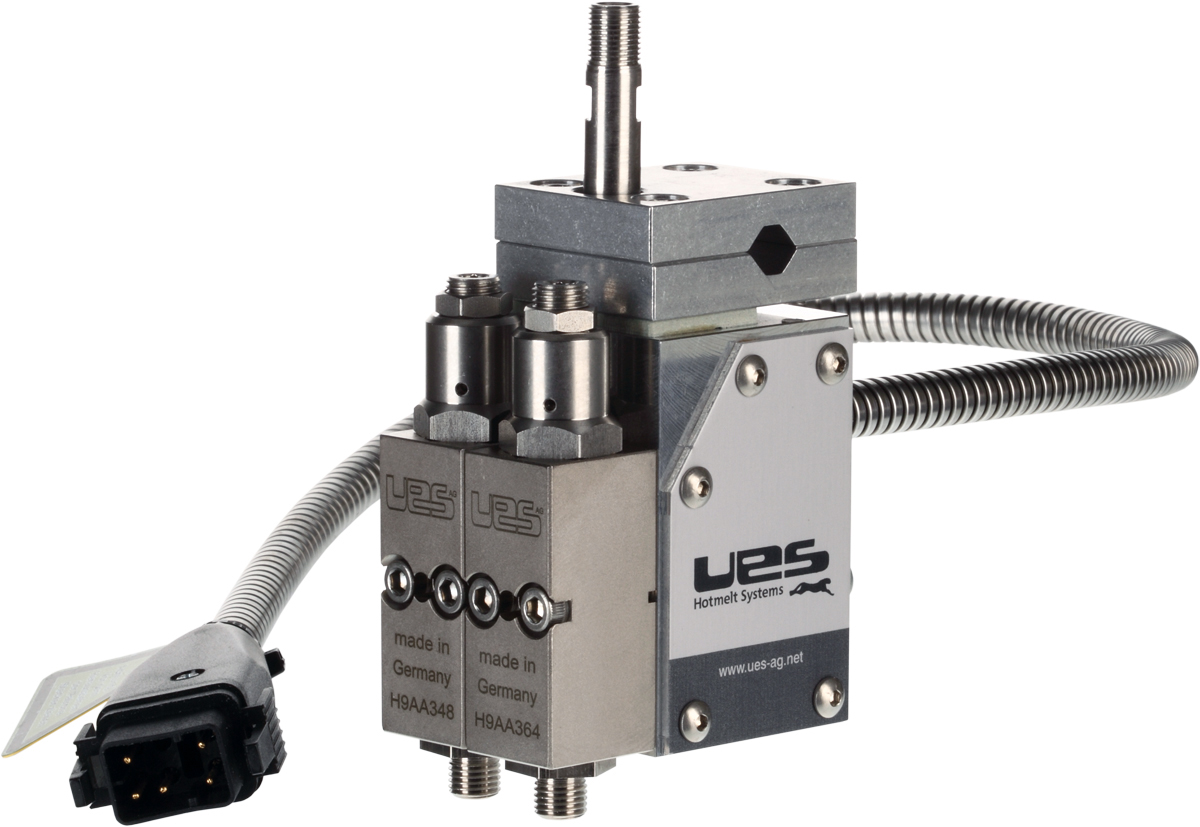

UES automatic glue gun H302 44 with 2 H300 F modules
- Suitable for dot or bead application.
- Air open - Spring closed.
- 44mm width (22mm hart - hart).
- Compatible with Nordson hot melt units from the 3000 and ProBlue series.

Ask for price

Description
Specifications

UES Logo 200px RGB 01 00 OGE

Hotmelt Gun H302 44

Features
• Dot/bead application for normal utilisation
• 2 x Module H300 F
• Air opened/spring closed
• Integrated heater and sensor
• Width of the gun body: 44 mm (center - center distance: 22mm)
• UES Compact, connections compatible with Nordson® Serie 3000 and ProBlue
• Ready for connection incl. cordset, holder, air/glue connection and module

H302 44

Optional Accessories
• SST precision nozzle, various orifices
• Inlinefilter straight, 45° or 90°, incl. SST filter screen
• Rapid change inlinefilter, straight, 45° or 90° incl. filter screen
• Solenoid valve 3/2-ways
• Solenoid valve 3/2-ways fast switching

Technical Details
Operating temperature	max. 200 °C
Air pressure	4 - 6 bar
Glue pressure	max. 100 bar
Power supply	240 VAC, 50/60 Hz
Max. performance	4,000 - 5,000 t/min
Min. application time	5 ms
Viscosity range	20,000 mPas

UES automatisch lijmpistool H302 44 met 2 H300 F modules.

- Geschikt voor punt of streep lijmopdracht.
- Lucht open - veer gesloten.
- 44mm breedte (22mm hart - hart).
- Compatibel met Nordson hotmelt units uit de 3000 en ProBlue serie.
