UES Hot melt swirl glue gun H301 QM 22 SP

Product SKU: UESH301QM22SP

Product Availability: Not on stock

UES Nordson compatible Hot melt swirl gun H301 QM 22 SP
Especially developed; for use within small spaces.

Ask for price

Description

UES Logo 200px RGB 01 00 OGE

Swirl Gun H301 QM22 SP

Features
• Spray gun
• Module H300 SP
• Air opened/spring closed
• Width 22 mm
• Pressure regulator and air heater incl.
• UES Compact, connections compatible with Nordson® Serie 3000 and ProBlue
• Connections compatible with Nordson® H201CF/CFHP and EP34-1S
• Ready for connection incl. cordset, holder, air/glue connection and module

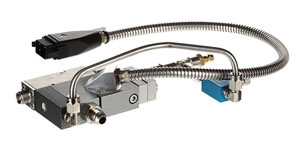

qm22 1 kl

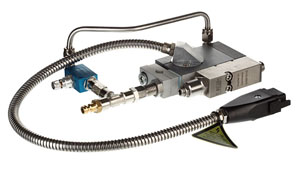

qm22 2 kl

Optional Accessories
• SST precision nozzle, various orifices
• Inlinefilter straight, 45° or 90°, incl. SST filter screen
• Rapid change inlinefilter, straight, 45° or 90° incl. filter screen
• Solenoid valve 3/2-ways
• Solenoid valve 3/2-ways fast switching

Technical Details
Operating temperature	max. 200 °C
Air pressure	4 - 6 bar
Glue pressure	max. 100 bar
Power supply	240 VAC, 50/60 Hz
Max. performance	4,000 - 5,000 t/min
Min. application time	5 ms
Viscosity range	20,000 mPas
